透明陶瓷是經過獨特材料設計與特殊工藝制備的完全致密多晶陶瓷材料，它既能在特定光譜范圍內接近達到理論光學透過率、同時還能承受大的機械/熱載荷，是一類重要的先進結構/功能一體化材料。

The transparent ceramic is a kind of fully dense polycrystalline material fabricated through unique material design and processing. It is an advanced material with integrated structural/ functional properties, which can not only approach to the theoretical optical transmittance in a specific spectral range but also withstand high mechanical and thermal loads.

1、透明陶瓷的彈性模量、硬度、斷裂韌性以及斷裂強度等機械性能均為其3-5倍以上；
2、透明陶瓷的光譜透過范圍覆蓋近紫外、可見光、激光、中紅外波段；
3、透明陶瓷的抗熱震性、耐砂塵雨蝕、環境耐候性更優

1. The mechanical properties of the transparent ceramic, such as elastic modulus, hardness, fracture toughness, and fracture strength, are more than 3 to 5 times higher.
2. The spectral transmission range of transparent ceramics covers the near-ultraviolet, visible light, laser and mid-infrared region.
3. The thermal shock resistance, sand/rain erosion resistance and weatherability of transparent ceramics are better.

性能指標對比

Critical indicators

本公司產品紫外波段透過率

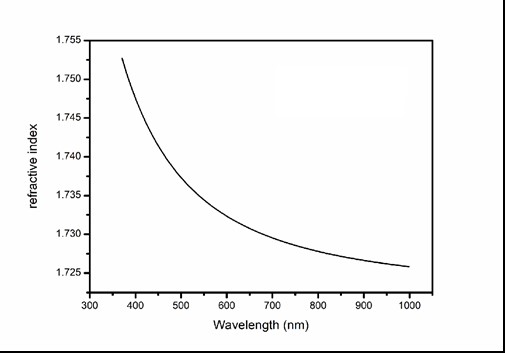

The refractive index of the company's product

本公司產品折射率

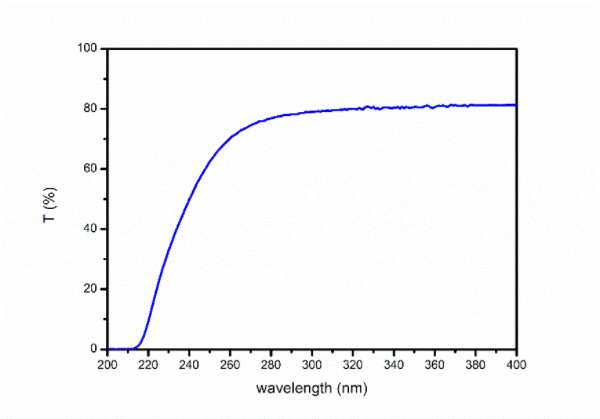

The transmittance of the company's product in the ultraviolet band

本公司產品紫外-可見光-中紅外透過率

The transmittance of the company's product in the ultraviolet, visible and mid-infrared range

產品規格

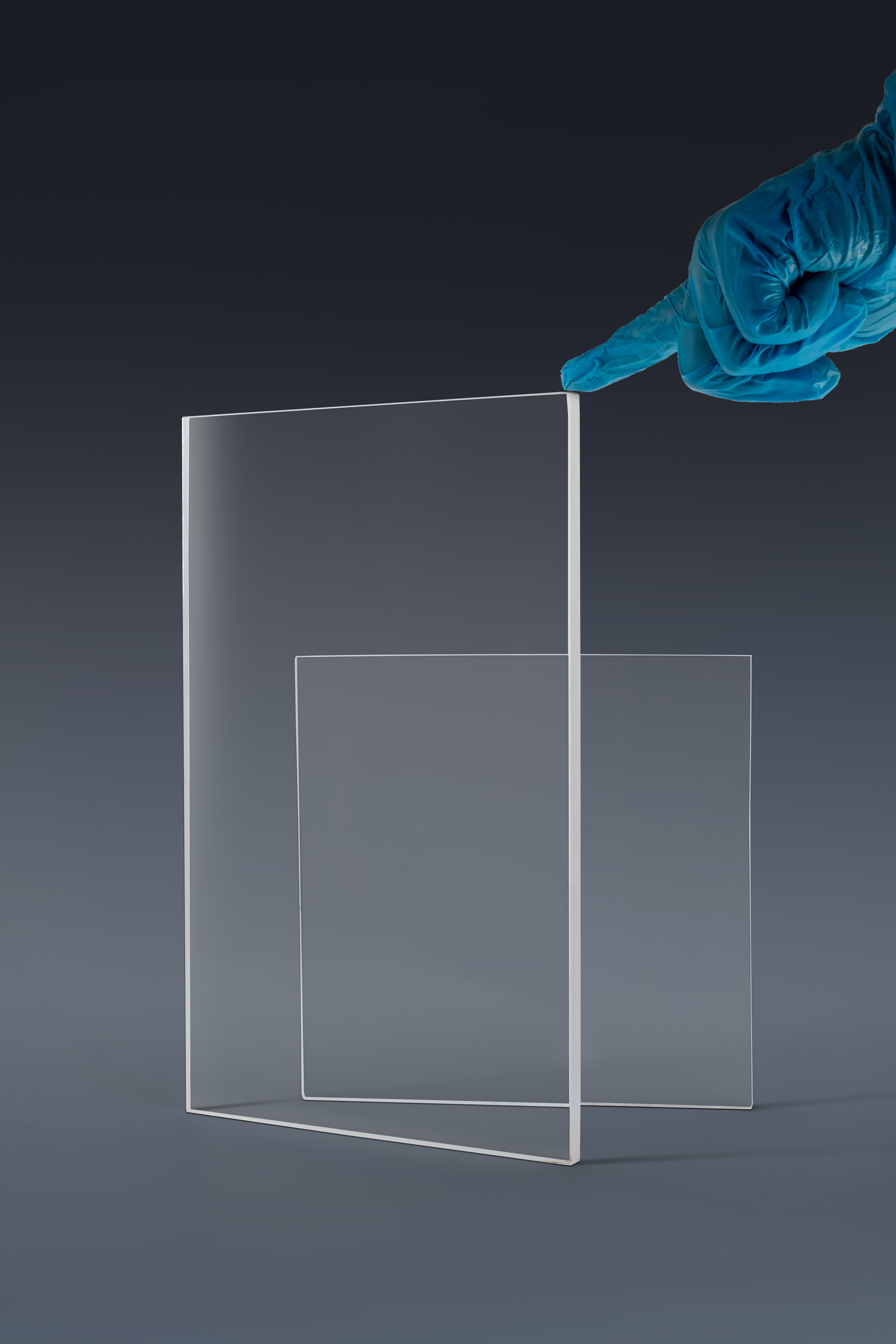

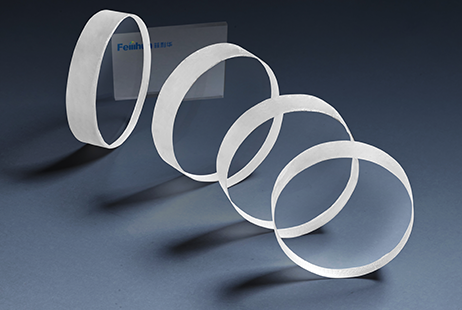

Product specification

方板/Square flat plate：260×160×5 mm，
圓板/Circular flat plate：φ150×5 mm ，
可依客戶需求定制

公司介紹

Company Profile

武漢海凌匯智新材料有限公司（以下簡稱“公司”）由湖北菲利華石英玻璃股份有限公司（創業板股票代碼：300395）和武漢理工大學專家團隊共同發起成立。
公司致力于先進結構/功能一體化透明陶瓷材料技術與產品的市場化開發，目前產品主要包括光學陶瓷器件、半導體用透明陶瓷器件、高端裝備用透明陶瓷部件等。公司已具有高品質透明陶瓷與器件的設計制備等全套技術和專利，研制的透明陶瓷技術指標達到國際先進水平并填補國內空白。公司已建成“結構/功能一體化透明陶瓷材料研發及生產平臺”，擁有國內最大口徑“雙兩千”熱等靜壓燒結系統等核心裝備以及完備的透明陶瓷生產全過程檢驗檢測平臺。

WUHAN HYALINE HUIZHI NEW MATERIALS CO., LTD. (hereinafter referred to as "the Company") was jointly founded and set up by Hubei Feilihua Quartz Glass Co., Ltd. (Gem board stock code: 300395) and the team of professionals from Wuhan University of Technology.
The Company is dedicated to the market-oriented development of advanced structure/function integrated transparent ceramic technologies and products. Currently, it mainly produced optical ceramic devices, transparent ceramic devices for semiconductors, transparent ceramic components for high-end equipment, etc. The Company currently holds a complete set of technologies and patents for the design and preparation of advanced transparent ceramics and devices. The technical indexes of transparent structural ceramics developed have reached the international advanced level and filled gaps in the domestic. The Company has already set up a "R & D and Production platform for structure/function-integrated transparent ceramic materials" and owns the core equipments such as the largest "Double Two Thousand" hot isostatic pressing sintering system in China, as well as a complete “inspection and testing platform for the entire process of transparent ceramic production”.
